Cotton Series Card Clothing

Available in 960 & 860 ppsi
Metallurgy : Unistar, Unichrome & Unicarb
Specifications : CP 2035 x 0.4 - 960, CR 2030 x 0.5 - 860, CP 1735 x 0.4 - 960, CR 1730 x 0.5 - 860

Available in 310 , 330 & 390 ppsi
Metallurgy : Unistar, Unichrome & Unicarb
Specifications : DL 4030 x 0.9 310RC, DL 4030 x 0.85 330RC, DN 4030 x 0.85 390R, DN 4030 x 0.85 390C

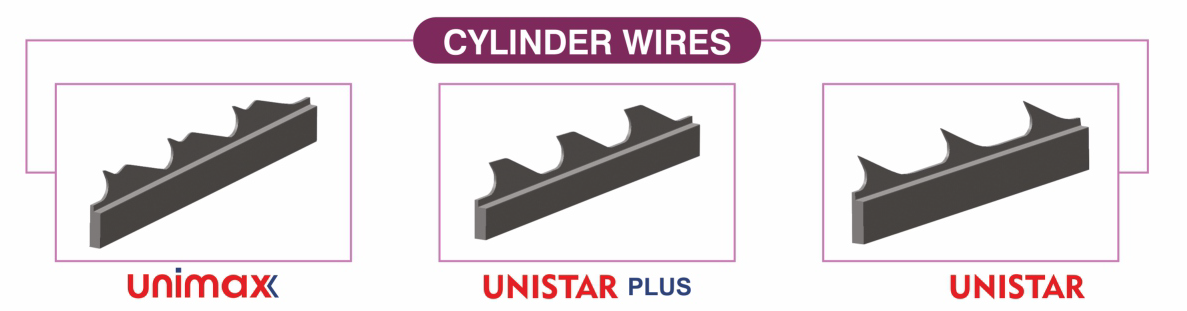

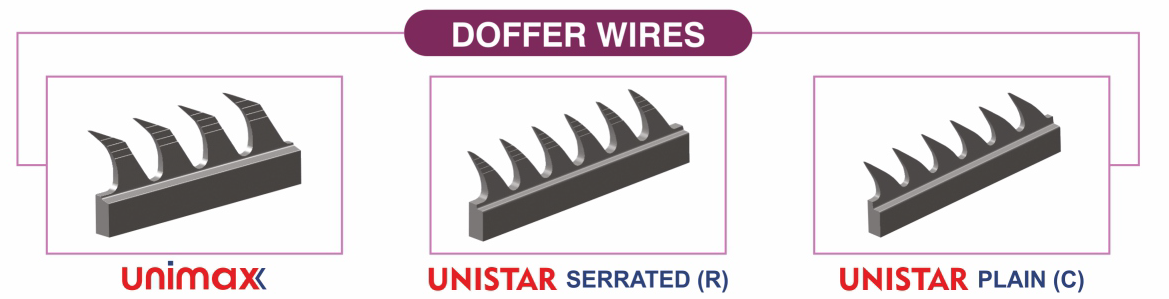

Features of Cylinder & Doffer Wires:

  • Special tooth profile.
  • Fibres continuously pushed toward tip for carding action between cylinder and flat tops.
  • Strong cylinder wire tip-better life and consistency in silver quality.
  • Effective opening of neps in cotton fibre – Yields better NRE%.
  • Minimum maintenance – Lesser number of re-sharpening.

SERIES
530, 580, 600 & 700 FLAT TOPS
SERIES
550 FLAT TOPS

Features of Flat Tops:

  • Strong - Made of special grade oil tempered steel with high fatigue properties.
  • Long life - Extra hardened tips by Hydrogen fuel flaming & cryogenic quenching method.
  • Smooth surface finish – flat tops remains naturally clean for longer time.
  • Consistent slivery quality – NRE% and imperfections.
  • Available in progressive pattern STILO series and Uniform setting pattern UNO series.
